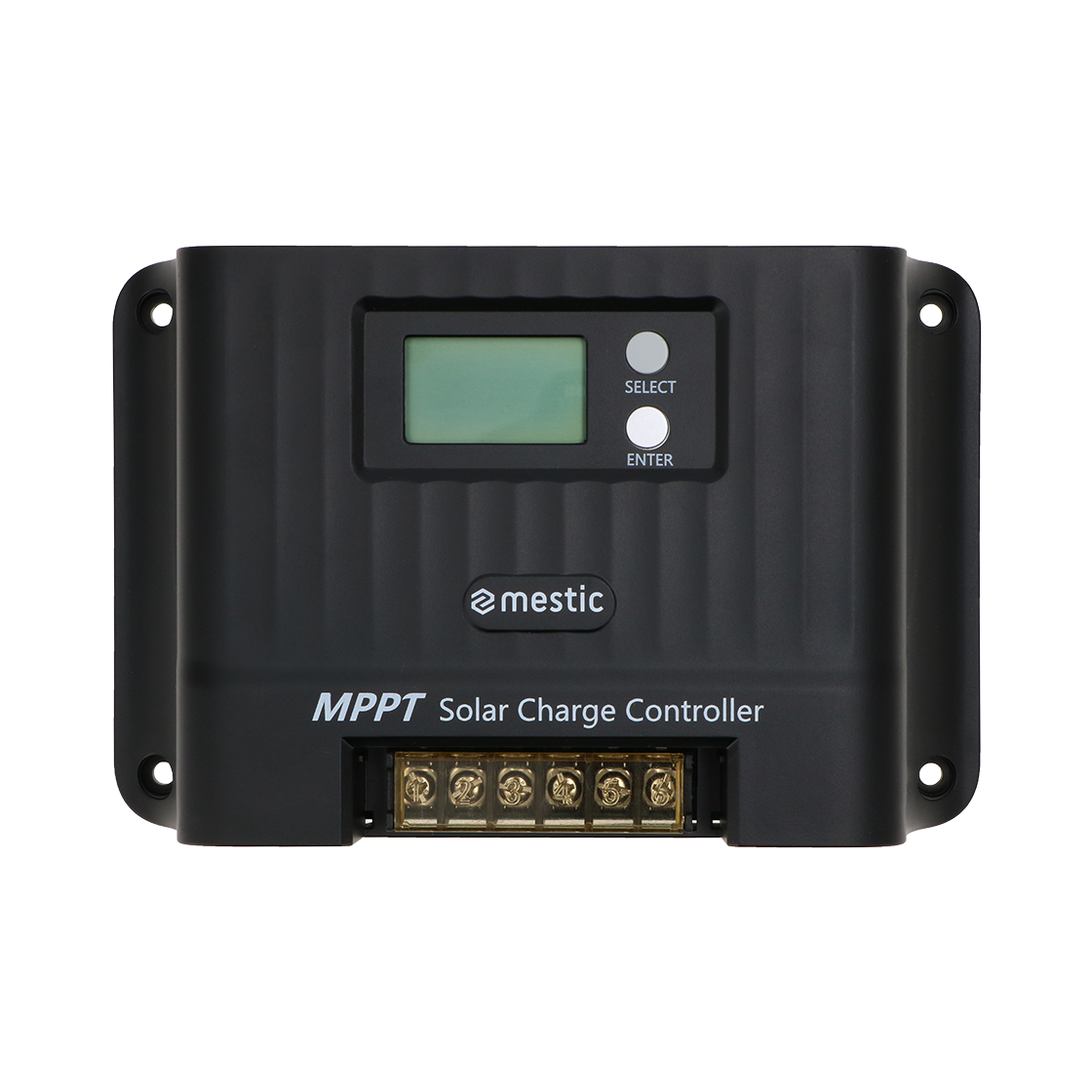

Solar Charge Controller MPPT MSC-4020

With the Mestic MPPT Solar charge controller MSC-4020 you connect your solar panel to the battery. By using a regulator you charge your battery safely and extend its life. The Mestic MSC-4020 regulator with MPPT technology maximizes your energy output.

MPPT charge controller solar panels

A charge controller adjusts the voltage level of the solar panel toward the voltage of the battery. This charges the battery safely and extends its life. This MPPT solar charge controller is suitable for charging a wet, gel, sealed and lithium batteries. The MPPT technology automatically tracks the maximum power point and thus always extracts the maximum power from the solar panels. Even when the sun shines less brightly, the efficiency remains high. Sometimes up to 30% higher than with a PWM controller. Thanks to the LCD display, the operating status of the regulator and the battery charge level are easy to follow and set.

Main benefits

• Suitable for solar panels up to 260 W
• Suitable for wet, gel, sealed and lithium batteries
• Protected against: overload, excessive discharge, short circuit, high voltage and reverse polarity connection
• Gets the maximum power from your solar panel
• Prolongs battery life
• System voltage: 12 V / 24 V
• Current: 20 A (charging)
• Input voltage: 75 V

Combine with solar panel up to 260 W

The Mestic MPPT charge regulators use advanced techniques. For example, the controller disconnects the voltage of the battery and the solar panel. This allows you to connect a 12 V or 24 V battery to solar panels with a higher voltage without any problems. In doing so, the charge controller takes into account the charge level of the battery. In addition, the solar charge controller is equipped with extensive electronic protection. Among other things, they protect against overloading, excessive discharge, short circuits, high voltage and reverse polarity connection. This allows you to generate green energy in a safe way! The MPPT Solar charge controller MSC-4020 can handle 10 A of current and can be combined with a solar panel up to 260 W.

In short, the Mestic MPPT Solar charge controller MSC-4020 connects your solar panel to the battery and ensures that it is safely charged. Thanks to MPPT technology, you are assured of maximum energy output.
